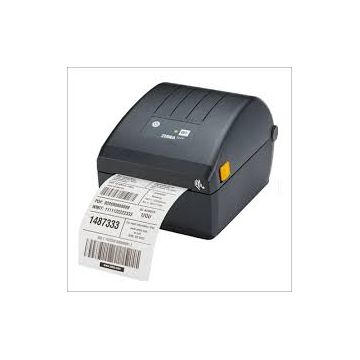

Zebra ZD230 Label Printer - Direct Thermal - 203 DPI - USB

Corded, Cutter, 152mm/s, Zebra, USB, Black, Windows, 2, New, Direct Thermal, 203, 4 inch, Monochrome, Desktop, 1 inch
GBP £282.00
(Inc GST)
ZD23042-D0EG00EZ
+

Description

The Zebra ZD230 is a compact and reliable 4-inch direct thermal label printer, designed for efficiency and affordability. Offering fast printing speeds of up to 152mm per second, this printer is perfect for businesses needing high-quality label, ticket, and receipt printing. With Zebra’s dual-wall construction, it ensures durability, while USB connectivity and EPLII & ZPLII emulation allow seamless integration with existing systems. Ideal for transportation, logistics, retail, healthcare, and light manufacturing, the ZD230 provides consistent performance at an exceptional value.

Product Features

  • High-Speed Printing – Prints at 152mm per second for increased efficiency.
  • 4-Inch Print Width – Supports labels up to 104mm (4.09 inches) wide.
  • Direct Thermal Technology – No ink or ribbon required, reducing operating costs.
  • USB Connectivity – Simple plug-and-play setup for effortless use.
  • EPLII & ZPLII Compatibility – Ensures seamless integration with Zebra and other printer systems.
  • Compact & Durable – Lightweight yet rugged dual-wall construction for long-lasting performance.
  • Energy EfficientENERGY STAR® qualified, reducing power consumption.
  • Versatile Media Support – Handles roll-fed, fan-fold, die-cut, continuous, and wristband media.
  • Easy Media Loading – Zebra’s OpenACCESS™ clamshell design for quick label replacement.
  • Expandable Options – Supports optional factory-installed cutter or peeler for enhanced functionality.


Product Specifications

Specification

Details

Print Technology

Direct Thermal

Resolution

203 dpi (8 dots/mm)

Max Print Width

104mm (4.09 inches)

Print Speed

Up to 152mm/s (6 inches per second)

Media Width

25.4mm – 112mm (1.00 – 4.4 inches)

Max Roll Diameter

127mm (5.0 inches)

Connectivity

USB

Printer Emulations

EPLII, ZPLII, XML

Sensors

Movable black mark, gap sensor

Physical Dimensions

220mm (L) x 176mm (W) x 151mm (H)

Weight

1.1 kg (2.5 lbs)

Power Supply

100-240V AC, 50-60Hz, ENERGY STAR®

Optional Features

Factory-installed cutter or peeler

Operating Temp.

4.4°C to 41°C (40°F to 105°F)

Storage Temp.

-40°C to 60°C (-40°F to 140°F)

Humidity

10% to 90% (operating), 5% to 95% (storage)

Warranty

2 Years

Features

Connectivity:
  • Corded
Cutter Option:
  • Cutter
Print Speed:
  • 152mm/s
Brand:
Zebra
Interface:
  • USB
Colour:
  • Black
OS Compatibility:
  • Windows
Warranty (Years):
  • 2
Product Type/Condition:
  • New
Print Method:
  • Direct Thermal
Print Resolution-DPI:
  • 203
Max Print Width:
  • 4 inch
Print Type:
  • Monochrome
Printer Type:
  • Desktop
Label Core Size:
  • 1 inch

Attachments

Brochure (Zebra_ZD230_DataSheet_EN.pdf, 384 Kb) [Download]
