Description

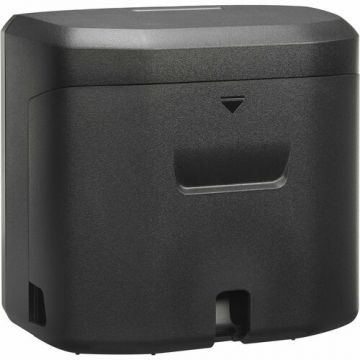

The Zebra SP7208-V is a next-generation 2D presentation scanner designed to accelerate checkouts in retail, grocery, pharmacy, and convenience stores. Offering superior scanning performance, this single-plane scanner efficiently captures 1D, 2D, and Digimarc® barcodes from paper and mobile screens. With multi-interface connectivity (USB, RS232, Keyboard Wedge), an auxiliary port for handheld scanners, and IP52-rated durability, the SP7208-V ensures seamless operations at manned and self-checkout lanes
Product Features
- Ultra-Fast Scanning: High swipe speeds and a large reading area for quick, effortless barcode capture.
- Superior Decode Performance: Reads poorly printed, damaged, crinkled, or faded barcodes, including reflective surfaces.
- Multi-Interface Connectivity: Supports USB, RS232, and Keyboard Wedge for easy integration with any POS system.
- Digimarc® Barcode Support: Efficiently scans Digimarc-enhanced barcodes for next-level checkout speeds.
- Optional Colour Camera (SP7208-V Model Only): Enables vision-based applications such as loss prevention and shrink control.
- Durable & Spill-Resistant: IP52-rated with elevated electronics for protection against accidental spills.
- Customisable Scan Feedback: Choose between different beep tones, digital sounds, or add your own brand-specific alert.
- Auxiliary Scanner Port: Connect an optional handheld scanner to scan large or heavy items with ease.
- Energy-Efficient Design: Intelligent illumination minimises eye strain and activates only when items enter the scan zone.
Product Specification
Feature | Details |
Scan Engine | 2D Imager (Standard Range) |
Supported Barcodes | 1D, 2D, Digimarc® |
Connectivity | USB, RS232, Keyboard Wedge |
Ports | Host (RJ45 10-pin), AUX Scanner (USB-A), EAS (RJ45 10-pin) |
Colour | Black |
IP Rating | IP52 (Dust and Spill Resistant) |
Illumination | 660nm Deep Red LEDs |
Resolution | 2.3 MP (1920 x 1200 pixels) |
Swipe Speed | Up to 305 cm per second |
Operating Temperature | 0°C to 50°C |
Weight | 577 g |
Dimensions | 137mm (H) × 152mm (W) × 84mm (D) |
Warranty | 3 Years |
