Description

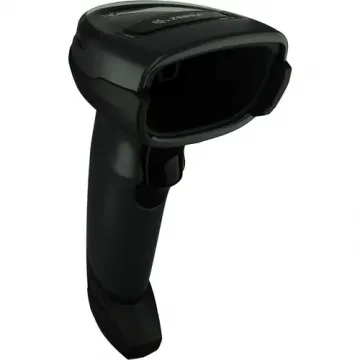

The Zebra DS4608 2D Barcode Scanner sets a new standard for performance and versatility, making it the ideal scanning solution for retail, hospitality, and quick-service restaurants. Designed for efficiency, this scanner captures 1D, 2D, DotCode, and DataMatrix barcodes—whether printed on labels or displayed on mobile screens. With Zebra’s PRZM Intelligent Imaging technology, a high-resolution megapixel sensor, and an 800 MHz microprocessor, the DS4608 ensures instant barcode capture, even on damaged or poorly printed codes.
Perfect for retail checkout, inventory management, and age verification, this scanner seamlessly switches between handheld and hands-free modes with the optional presentation stand. The rugged build with IP52 sealing, a double-sealed optical system, and a recessed scan window ensures durability, resisting dust, liquid spills, and everyday wear and tear.
Product Features
- Advanced Scanning Technology – Reads 1D, 2D, DotCode, DataMatrix, and even small barcodes on jewellery tags.
- PRZM Intelligent Imaging – Enhances barcode capture speed and accuracy.
- Extended Scanning Range – Reads UPC codes from up to 28 inches away for faster checkout.
- Dual Mode Operation – Switch between handheld and hands-free scanning instantly with the optional stand.
- Multi-Code Data Formatting (MDF) – Scan multiple barcodes with one trigger pull and transmit only the required data.
- Intelligent Document Capture – Scan and process full-page documents, utility bills, and ID cards.
- Rugged & Reliable – Withstands 6 ft. (1.8m) drops, 2,000 tumbles, and IP52 sealing protects against dust and spills.
- OCR & Driver’s License Parsing – Speeds up data collection for loyalty applications and age verification.
- Checkpoint EAS Compatibility – Optional EAS support deactivates security tags while scanning.
- Effortless Integration – Pre-configured settings and auto-host detect cables for plug-and-play setup.
Product Specifications
Dimensions | 16.5 cm (H) x 6.7 cm (W) x 9.8 cm (D) |
Weight | 161.9 g |
Scanning Technology | 1D, 2D, DotCode, DataMatrix, PDF417, QR Code, Aztec, MaxiCode, Han Xin, Postal Codes |
Resolution | 1280 x 800 pixels |
Scanning Range | Up to 71 cm (28 inches) for UPC codes |
Connectivity | USB, RS232, TGCS (IBM) 46XX over RS485 |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -40°C to 70°C |
Humidity | 5% to 95% RH, non-condensing |
Drop Resistance | Withstands drops from 1.8m (6 ft.) onto concrete |
Tumble Resistance | 2,000 tumbles in a 0.5m tumbler |
IP Rating | IP52 (sealed against dust and water splashes) |
Light Source | 617nm amber LED aiming pattern, 660nm red LED illumination |
EAS Compatibility | Optional Checkpoint EAS support |
Keyboard Support | Over 90 international keyboards |
Colour Options | Nova White, Twilight Black |
Regulatory Compliance | CE, FCC, RoHS, EN 50581:2012, IEC 62368-1 |
Features
- Wired
- Handheld
- 1D Imager
- 2D Area Imager
- USB
- Serial/RS232
- Standard
- Black
- General purpose
- Entry Level
- IP52
- Distribution
- Hospitality
- Retail
- 5
- New
