Description
The TSC TX210 Desktop Barcode Printer is a high-performance thermal transfer and direct thermal label printer, designed to handle demanding applications across manufacturing, logistics, healthcare, and retail industries. Featuring a rugged double-walled clamshell design, USB, RS232, and Ethernet connectivity, and fast 8-inch per second print speed, the TX210 delivers precision, durability, and efficiency. With SOTI Connect and TSC Console support, it enables remote printer management, enhancing productivity. The 300m ribbon capacity ensures cost savings, while its advanced thermal printhead mechanism guarantees high-quality labels for product marking, shipping, specimen tracking, and more.
Product Features
- High-Speed Printing – Prints at up to 8 inches per second with 203 DPI resolution, ensuring crisp, clear labels.
- Versatile Connectivity – Includes USB 2.0, RS232, and Ethernet; optional Wi-Fi (802.11 a/b/g/n/ac) with Bluetooth 4.2 available.
- Industrial-Grade Durability – Double-walled clamshell housing with an ADF hinge and hybrid motor for reliable performance.
- Remote Printer Management – Supports SOTI Connect and TSC Console, enabling real-time monitoring and troubleshooting.

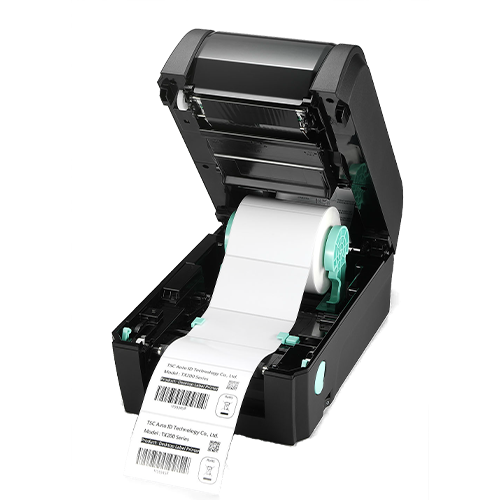

- Flexible Media Handling – Prints on continuous, die-cut, fan-fold, black mark, and notch labels up to 4.25 inches wide.
- Large Ribbon Capacity – Uses 300-meter ribbons on a 1-inch core, reducing downtime and operational costs.

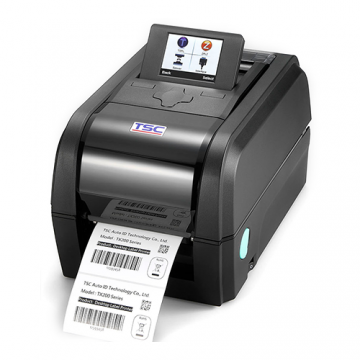

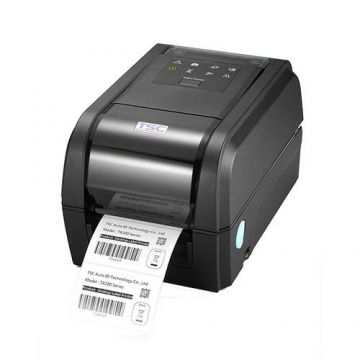

- Easy-to-Use Interface – Multi-icon LED display for status updates; optional 3.5” color LCD screen for an enhanced user experience.
- Advanced Printhead Technology – Self-Diagnostic TPH Care automatically detects and compensates for bad dots, ensuring consistent print quality.
- Barcode & Font Support – Supports 1D & 2D barcodes, TrueType fonts, and multiple printer languages (TSPL-EZD, EPL, ZPL, DPL).
Product Specifications
| Printing Method | Thermal Transfer & Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Max Print Speed | 8 ips (203 mm/sec) |
| Max Print Width | 4.25" (108 mm) |
| Max Print Length | 1,000" (25,400 mm) |
| Media Type | Continuous, die-cut, black mark, fan-fold, notch |
| Media Width | 0.75” – 4.4” (19 – 112 mm) |
| Media Roll Capacity | 5” (127 mm) OD |
| Ribbon Capacity | 300m length, 1" core, 67 mm OD |
| Memory | 128 MB SDRAM, 128 MB Flash (Expandable via microSD up to 32GB) |
| Interfaces | USB 2.0, RS232, Ethernet (Optional: Wi-Fi + Bluetooth 4.2) |
| Sensors | Transmissive gap, black mark reflective, ribbon end, ribbon encoder, head open |
| Processor | 32-bit RISC CPU |
| Display | LED panel with status icons (Optional: 3.5” color TFT LCD) |
| Power Supply | AC 100-240V, 50-60Hz |
| Dimensions (W x H x D) | 226 mm x 198 mm x 332 mm (8.9” x 7.8” x 13.07”) |
| Weight | 3.75 kg (8.27 lbs) |
| Printer Languages | TSPL-EZD (Compatible with EPL, ZPL, ZPL II, DPL) |
| Operating Temperature | 5 – 40°C, 25 – 85% RH (non-condensing) |
Features
Print Speed:
- 203mm/sec
Brand:
TSC
Interface:
- USB
- Serial/RS232
- Ethernet
OS Compatibility:
- Windows
- Android
Warranty (Years):
- 3
Product Type/Condition:
- New
Print Method:
- Direct Thermal
- Thermal Transfer
Print Resolution-DPI:
- 203
Max Print Width:
- 4 inch
Print Type:
- Monochrome
Printer Type:
- Desktop
