Description

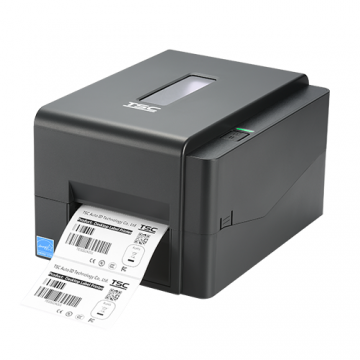

The TSC TE210 is a high-performance desktop thermal transfer barcode printer, designed for fast, reliable, and cost-effective label printing. Featuring 203 DPI resolution, 152.4 mm (6”)/sec print speed, and advanced connectivity options (USB, RS232, Ethernet), this printer is ideal for manufacturing, warehousing, healthcare, retail, and logistics applications. With a 128 MB Flash memory and 64 MB SDRAM, it ensures smooth operation and high-speed printing. Its durable ABS plastic enclosure, multiple connectivity options, and TSPL-EZD firmware compatibility make it the perfect solution for businesses looking for an affordable yet powerful label printing solution.
Product Features
- High-Speed Printing – Prints at up to 152.4 mm (6”)/second for efficient label production.
- 203 DPI Resolution – Delivers sharp and clear barcodes and text.
- Versatile Media Support – Supports continuous, die-cut, black mark, fan-fold, and notched labels.
- Large Memory – 128 MB Flash memory & 64 MB SDRAM for smooth operation.
- Multiple Connectivity Options – USB 2.0, RS232, Ethernet (10/100 Mbps), USB host, and optional Bluetooth.
- Durable Build – ABS plastic enclosure ensures long-lasting performance.
- Real-Time Clock (RTC) & Buzzer – Ideal for time-sensitive label printing and error notifications.
- Supports Multiple Printer Languages – TSPL-EZD firmware for seamless EPL, ZPL, ZPL II, and DPL emulation.
- Energy Efficient – ENERGY STAR® certified, reducing power consumption.
- Reliable Performance – 3-year warranty, 25 km print head lifespan, and 50 km platen lifespan.
Product Specifications
| Printing Method | Thermal Transfer & Direct Thermal |
| Resolution | 203 DPI (8 dots/mm) |
| Max. Print Speed | 152.4 mm (6”)/second |
| Max. Print Width | 108 mm (4.25”) |
| Max. Print Length | 25,400 mm (1000”) |
| Enclosure | ABS Plastic |
| Memory | 128 MB Flash, 64 MB SDRAM |
| Connectivity | USB 2.0, RS232, Ethernet (10/100 Mbps), USB host, Optional Bluetooth |
| Media Width | 20 - 112 mm (0.8” - 4.4”) |
| Media Roll Capacity | 127 mm (5”) OD |
| Ribbon Capacity | 300 m (1” core), 110 m (0.5” core) |
| Sensors | Transmissive gap, Black mark reflective (adjustable), Ribbon end, Head open |
| Real-Time Clock | Standard |
| Buzzer | Standard |
| Printer Language | TSPL-EZD (EPL, ZPL, ZPL II, DPL compatible) |
| Environmental Standards | ENERGY STAR® Certified, RoHS, REACH, WEEE Compliance |
| Physical Dimensions | 204 mm (W) x 164 mm (H) x 280 mm (D) |
| Weight | 2.5 kg (5.51 lbs) |
| Power Supply | AC 100-240V, 2.5A, 50-60Hz (Input) / DC 24V, 2.5A, 60W (Output) |
| Warranty | Printer: 3 Years, Print Head: 12 Months or 25 km, Platen: 12 Months or 50 km |
Features
Print Speed:
- 152.4mm/sec
Brand:
TSC
Interface:
- USB
- Serial/RS232
- Ethernet
OS Compatibility:
- Windows
Warranty (Years):
- 3
Product Type/Condition:
- New
Print Method:
- Direct Thermal
- Thermal Transfer
Print Resolution-DPI:
- 203
Max Print Width:
- 4 inch
Print Type:
- Monochrome
Printer Type:
- Desktop
Label Core Size:
- 1 inch
