Description

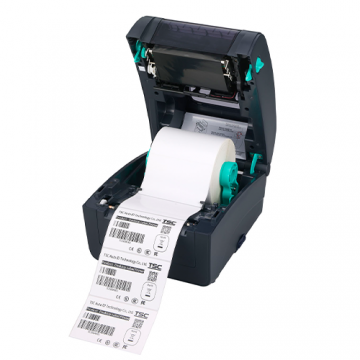

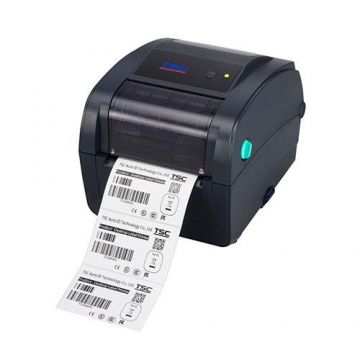

The TSC TC200 is a powerful and compact desktop thermal transfer barcode printer designed for high-performance printing in various business applications. It combines rugged durability, high-speed printing, and flexible connectivity options to meet the demands of point-of-sale, inventory control, asset tracking, shipping, and more. Featuring TSPL-EZ™ firmware, the TC200 ensures seamless integration with major barcode languages, making it an ideal solution for businesses seeking efficiency, reliability, and precision in their labeling processes.
Product Features
- Space-Saving Design – Compact and ergonomic to fit into any workspace.
- Durable Build – Double-walled clamshell enclosure for enhanced durability.
- Fast Printing Speed – Prints at 152 mm (6”)/second for high-volume tasks.
- Versatile Printing – Supports thermal transfer and direct thermal printing.
- Multiple Connectivity Options – USB 2.0, RS232 Serial, Parallel Port (LPT), and Ethernet for seamless integration.
- High Print Resolution – 203 DPI for crisp and clear barcode labels.
- Flexible Media Handling – Supports continuous, die-cut, fan-fold, black mark, and notch media.
- User-Friendly Design – Easy ribbon and media loading with a center-biased spring-loaded design.
- Powerful Firmware – Supports TSPL-EZ™, compatible with EPL and ZPL printer languages.
- Energy Efficient – ENERGY STAR® certified, ensuring reduced power consumption.
Product Specifications
| Printing Method | Thermal Transfer & Direct Thermal |
| Resolution | 8 dots/mm (203 DPI) |
| Max. Print Speed | 152 mm (6”)/second |
| Max. Print Width | 108 mm (4.25”) |
| Max. Print Length | 2,286 mm (90”) |
| Memory | 4 MB Flash, 8 MB SDRAM, SD card slot (expandable up to 4 GB) |
| Interfaces | USB 2.0, RS232 Serial, Parallel (LPT), Ethernet (10/100 Mbps) |
| Ribbon Capacity | 110 m long, max. OD 40 mm, 0.5” core (ink coated outside) |
| Ribbon Width | 40 mm ~ 110 mm (1.57“ ~ 4.33“) |
| Media Width | 20 ~ 112 mm (0.79” ~ 4.4”) |
| Media Type | Continuous, Die-cut, Black mark, Fan-fold, Notch |
| Label Roll Capacity | 127 mm (5”) OD |
| Sensors | Gap transmissive, Black mark reflective (adjustable), Head open, Ribbon end |
| Processor | 32-bit RISC CPU |
| Power Supply | External universal switching power supply (AC 100-240V, DC 24V 3.75A, 90W) |
| Physical Dimensions | 203 mm (W) x 191.5 mm (H) x 259.3 mm (D) (7.99” x 7.54” x 10.21”) |
| Weight | 2.2 kg (4.85 lbs) |
| Printer Language | TSPL-EZ™ (Compatible with EPL, ZPL, ZPL II) |
| Environmental Compliance | RoHS, WEEE |
| Certifications | FCC Class B, CE Class B, UL, ENERGY STAR® |
| Warranty | 3 Years |
Features
Brand:
TSC
Interface:
- LPT
- USB
- Serial/RS232
- Ethernet
Warranty (Years):
- 3
Product Type/Condition:
- New
Print Method:
- Direct Thermal
- Thermal Transfer
Print Resolution-DPI:
- 203
Max Print Width:
- 4 inch
Print Type:
- Monochrome
Printer Type:
- Desktop
Label Core Size:
- 1 inch
