Description

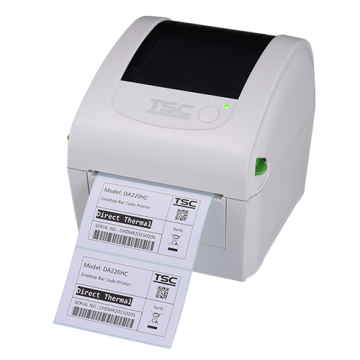

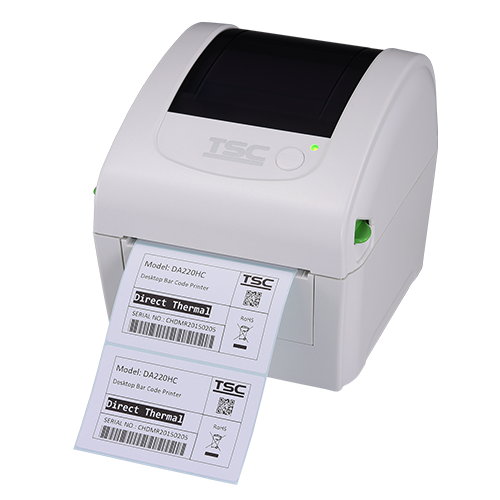

The TSC DA220W Direct Thermal Barcode Printer is a compact, high-performance label printer designed for a wide range of applications, including shipping, retail, healthcare, and logistics. Featuring a double-walled clamshell design, USB and Ethernet connectivity, and a high-speed printing capability of up to 6 inches per second, this printer delivers efficiency and durability at an affordable price. The 128 MB Flash memory and 64 MB DRAM ensure smooth operations, while its TSPL-EZD firmware allows seamless emulation of Eltron®, Zebra®, and Datamax printer languages.
With easy media loading, support for various label types, and ENERGY STAR® qualification, the TSC DA220W is an ideal choice for businesses looking for a cost-effective and high-quality barcode printing solution.
Product Features
- High-Quality Construction – Double-walled clamshell design ensures durability and easy maintenance.
- Fast Printing Speed – Prints up to 152.4 mm (6” per second) for high-volume tasks.
- Versatile Connectivity – Equipped with USB 2.0 (High-speed mode) and Ethernet for seamless integration.
- Ample Memory – 128 MB Flash & 64 MB DRAM for efficient processing of large print jobs.
- Easy Media Handling – Supports continuous, black mark, fan-fold, and notched media.
- Wide Label Compatibility – Handles labels from 19mm to 114mm (0.7” to 4.5”) in width.
- TSPL-EZD Firmware – Emulates EPL, ZPL, ZPL II, and DPL for flexible usage.
- Energy-Efficient – ENERGY STAR® qualified for reduced power consumption.
- Reliable Sensor System – Includes transmissive gap, black mark reflective, and head open sensors.
- Ideal for Multiple Applications – Perfect for shipping labels, retail tags, healthcare labeling, and ticket printing.
Product Specifications
| Printing Method | Direct Thermal |
| Resolution | 203 DPI (8 dots/mm) |
| Max. Print Speed | 152.4 mm (6” per second) |
| Max. Print Width | 108 mm (4.25”) |
| Max. Print Length | 25,400 mm (1000”) |
| Enclosure | Double-walled plastic |
| Physical Dimensions | 172 mm (W) x 165 mm (H) x 195 mm (D) |
| Weight | 1.5 kg (3.31 lbs) |
| Label Roll Capacity | 127 mm (5”) OD |
| Processor | 32-bit RISC CPU |
| Memory | 128 MB Flash, 64 MB DRAM |
| Connectivity | USB 2.0 (High-Speed), Ethernet |
| Sensors | Transmissive gap, black mark reflective, head open |
| Printer Language | TSPL-EZD (Compatible with EPL, ZPL, ZPL II, DPL) |
| Supported Media Width | 19 mm – 114 mm (0.7” – 4.5”) |
| Media Thickness | 0.055 – 0.19 mm (2.16 – 7.48 mil) |
| Label Core Diameter | 25.4 – 38 mm (1” – 1.5”) |
| Power Supply | AC 100-240V, 50-60Hz (Output: DC 24V, 2.5A, 60W) |
| Operation Conditions | 5°C – 40°C, 25% – 85% non-condensing |
| Storage Conditions | -40°C – 60°C, 10% – 90% non-condensing |
| Certifications | FCC Class A, CE Class A, RCM, CB, CCC, ENERGY STAR®, BIS, UL, EAC, RoHS, WEEE |
| Included Accessories | USB Cable, Power Cord, Windows Labeling Software, Quick Start Guide |
| Warranty | 3 Years |
Features
- 152.4mm/sec
- USB
- Ethernet
- General purpose
- 3
- New
- Direct Thermal
- 203
- 4 inch
- Monochrome
- Desktop
