Description

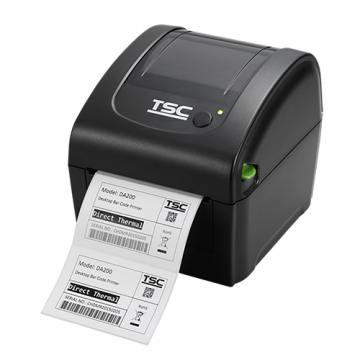

The TSC DA210 Desktop Direct Thermal Barcode Printer is an efficient and cost-effective solution for businesses requiring high-quality label printing. Featuring a high-speed 6 inches per second print rate, a durable double-walled clamshell design, and USB 2.0 connectivity, the DA210 is perfect for retail, logistics, healthcare, and warehouse applications. Its TSPL-EZ firmware supports multiple printer languages, ensuring seamless integration with existing systems. With easy media loading and ENERGY STAR® qualification, this printer offers reliable performance while being energy-efficient.
Product Features
- High-speed printing – Up to 6 inches per second for increased efficiency.
- Direct thermal printing – Eliminates the need for ink or toner.
- Compact and durable design – Double-walled clamshell structure for durability.
- Wide compatibility – Supports EPL, ZPL, ZPLII, TSPL-EZ, and DPL printer languages.
- USB 2.0 connectivity – High-speed data transfer for seamless printing.
- Memory configuration – 8MB Flash and 16MB DRAM for smooth operation.
- Versatile media handling – Supports continuous, black mark, fan-fold, and notched labels.

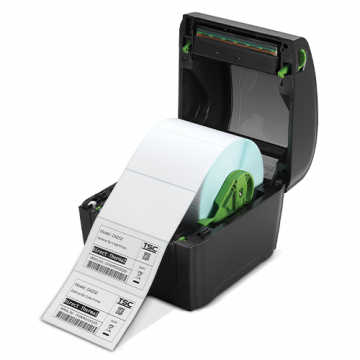

- Easy media loading – User-friendly design for quick roll changes.
- Compact size – Ideal for space-constrained environments.
- ENERGY STAR® certified – Ensures energy-efficient performance.
Product Specifications
| Printing Method | Direct Thermal |
| Resolution | 203 DPI (8 dots/mm) |
| Max Print Speed | 152.4 mm (6 inches) per second |
| Max Print Width | 108 mm (4.25 inches) |
| Max Print Length | 2,794 mm (110 inches) |
| Memory | 8MB Flash, 16MB DRAM |
| Processor | 32-bit RISC CPU |
| Connectivity | USB 2.0 (High-speed mode) |
| Media Handling | Continuous, black mark, fan-fold, notched |
| Media Width | 19 - 114 mm (0.7 - 4.5 inches) |
| Media Thickness | 0.055 - 0.19 mm (2.16 - 7.48 mil) |
| Media Core Diameter | 25.4 - 38 mm (1 - 1.5 inches) |
| Label Roll Capacity | 127 mm (5 inches) OD |
| Barcode Support | 1D: Code 39, Code 93, Code 128, EAN-8/13, UPC-A/E, POSTNET, etc. |
| 2D: QR Code, PDF-417, DataMatrix, Aztec, Maxicode | |
| Enclosure | Double-walled plastic |
| Physical Dimensions | 172 mm (W) x 165 mm (H) x 195 mm (D) |
| Weight | 1.5 kg (3.31 lbs) |
| Sensors | Transmissive gap sensor, Black mark reflective sensor, Head open sensor |
| Power Supply | External Universal Switching Power Supply |
| Input: AC 100-240V, 50-60Hz | |
| Output: DC 24V, 2.5A, 60W | |
| Operating Conditions | 5 - 40°C, 25 - 85% non-condensing |
| Storage Conditions | -40 - 60°C, 10 - 90% non-condensing |
| Certifications | FCC Class A, CE Class A, RCM, CB, CCC, ENERGY STAR®, BIS |
Features
Print Speed:
- 152.4mm/sec
Brand:
TSC
Interface:
- USB
Warranty (Years):
- 2
Product Type/Condition:
- New
Print Method:
- Direct Thermal
Print Resolution-DPI:
- 203
Max Print Width:
- 4 inch
Print Type:
- Monochrome
Printer Type:
- Desktop
