Description

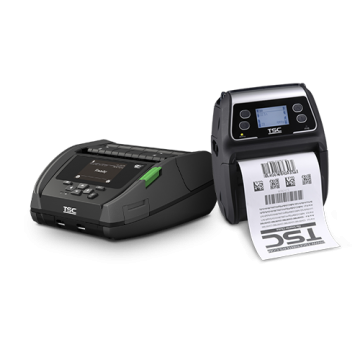

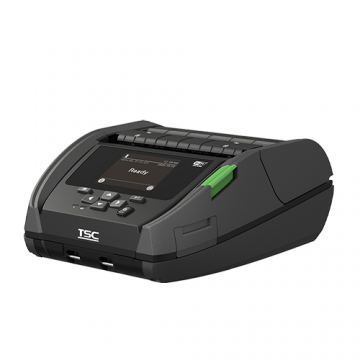

The TSC Alpha-40L Mobile Label Printer is a rugged, high-performance 4-inch direct thermal printer designed for on-the-go printing in demanding environments. Featuring USB-C, Bluetooth 4.2, Wi-Fi (802.11 a/b/g/n/ac), NFC, and a built-in peeler, this printer ensures seamless wireless connectivity and enhanced mobility. Engineered for transportation, logistics, retail, healthcare, and manufacturing applications, the Alpha-40L provides fast and reliable printing with an IP54 rating and 1.8m drop resistance (2.5m with a protective case). The smart battery system and SOTI Connect enable remote printer management, maximizing productivity while reducing downtime.
Product Features
- Seamless Wireless Connectivity – USB-C, Bluetooth 4.2, Wi-Fi (802.11 a/b/g/n/ac) with fast roaming, and NFC tap-to-pair for quick and secure connections.
- Enterprise-Grade Performance – High-speed 5 ips (127mm/sec) direct thermal printing with 203 dpi resolution for crisp, clear labels.
- Durable & Rugged – IP54-rated dust and water resistance; 1.8m drop protection (2.5m with a protective case).

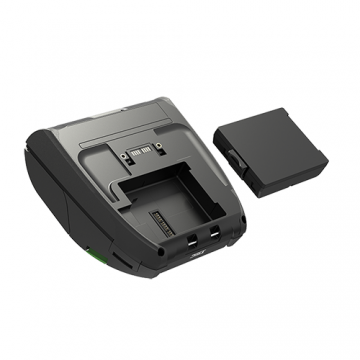

- Smart Battery Technology – 6,200 mAh Li-ion battery with monitoring via SOTI Connect and TSC Console to ensure full-shift productivity.
- Versatile Media Handling – Supports linerless labels, die-cut, black mark, receipt, fan-fold, and continuous media with built-in peeler for enhanced efficiency.
- Full Line of Accessories – Includes belt clip, shoulder strap, docking cradles, vehicle mounts, and battery eliminators for diverse labeling applications.
- Remote Printer Management – SOTI Connect & TSC Console enable real-time monitoring, troubleshooting, and fleet management.
- Enterprise Security & Compliance – Supports OPOS, Windows, Android, iOS SDKs, and TSPL-EZC (EPL2, ZPL2, CPCL) printer languages for seamless software integration.

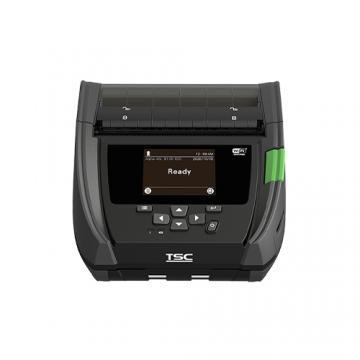

- User-Friendly Interface – 2.3" color LCD display, navigation keys, and LED status indicators for easy operation.
Product Specifications
| Printing Method | Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Max Print Speed | 5 ips (127 mm/sec) |
| Max Print Width | 104 mm (4.1") |
| Max Print Length | 2,794 mm (110") |
| Media Type | Die-cut, black mark, receipt, fan-fold, linerless, continuous |
| Media Width | 50.8 – 112 mm (2” – 4.4”) |
| Media Roll Capacity | 67 mm OD |
| Memory | 128 MB SDRAM, 128 MB Flash (Expandable via microSD up to 32GB) |
| Interfaces | USB-C, Bluetooth 4.2, Wi-Fi (802.11 a/b/g/n/ac), NFC |
| Battery | 7.4V DC, 6,200 mAh Li-ion rechargeable smart battery |
| Drop Resistance | 1.8m (6ft), 2.5m (8.2ft) with protective case |
| IP Rating | IP54 (Dust & Water Resistant) |
| Weight | 985g (including battery) |
| Dimensions (W x H x D) | 160 mm x 191 mm x 79 mm |
Features
Print Speed:
- 5
Brand:
TSC
Interface:
- NFC
- Bluetooth
- Type C
- WiFi
Rugged:
- Rugged/Heavy Duty
IP Rating:
- IP54
Warranty (Years):
- 2
Product Type/Condition:
- New
Print Resolution-DPI:
- 203
Max Print Width:
- 4 inch
Print Type:
- Monochrome
Printer Type:
- Mobile/Portable
