Description

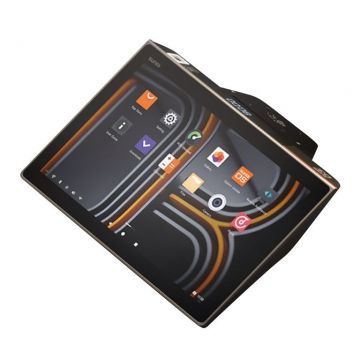

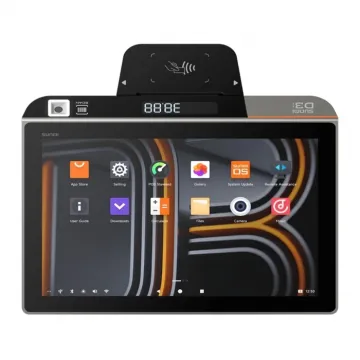

The SUNMI D3 MINI Smart POS Terminal (80mm Version) is a powerful Android 13-based desktop POS system designed to streamline business operations. Featuring a Qualcomm Hexa-Core processor, 3GB RAM + 32GB ROM, and a 10.1" HD touchscreen, this compact POS ensures fast, efficient, and reliable transactions. It is equipped with an integrated 1D/2D barcode scanner, NFC-enabled smart card reader, and a high-speed 80mm thermal printer with auto cutter, making it an ideal choice for retail, hospitality, and service industries. With multiple connectivity options, including Wi-Fi, Bluetooth, USB, Ethernet, 4G, and RJ12 for cash drawers, it seamlessly integrates into any business setup.
Product Features
- Powerful Processing – Qualcomm Hexa-Core processor, 3GB RAM + 32GB ROM for high-speed performance.
- 10.1" HD Capacitive Touchscreen – Multi-touch display with 300 nits brightness for clear visibility.
- Built-in 1D/2D Barcode Scanner – 1MP integrated scanner for quick and accurate barcode reading.
- NFC & Smart Card Support – Compatible with Type A & B, Mifare, and Felica smart cards for secure transactions.
- High-Speed 80mm Thermal Printer – 250mm/s print speed, auto cutter, 60mm roll diameter, and 150km print lifespan.
- 4G, Wi-Fi & Bluetooth Connectivity – Stay connected with 4G LTE, dual-band Wi-Fi (2.4GHz & 5GHz), and Bluetooth 5.0 (BLE).
- Versatile I/O Ports – Includes 3 × USB 3.0, RJ11, RJ12 (cash drawer), RJ45 (Ethernet), and an audio jack.
- Customer-Facing Display – 4" capacitive secondary display for better customer engagement.
- Expandable Storage – Supports MicroSD (TF card) up to 1TB.
- Compact & Durable – Modular design with rubber seals to protect against dust and liquid intrusion.
Product Specifications
| Processor | Qualcomm Hexa-Core, up to 2.4GHz |
| Operating System | SUNMI OS (based on Android 13) |
| Memory | 3GB RAM + 32GB ROM |
| External Storage | MicroSD (TF card) up to 1TB |
| Display | Main: 10.1" HD (800x1280), capacitive touchscreen, 300 nits |
| Customer Display: 4" IPS (480x800), capacitive touchscreen, 300 nits | |
| Scanner | 1MP built-in scanner for 1D/2D barcode reading |
| Payment Support | Smart card reader (Type A & B, Mifare, Felica, ISO/IEC 14443, ISO 15693), NFC |
| Printer | 80mm thermal printer, 250mm/s print speed, auto cutter, 150km print lifespan, max roll diameter 60mm |
| Connectivity | 3 × USB 3.0 Type A, RJ11 serial port, RJ12 cash drawer port, RJ45 LAN port, audio jack, MicroUSB debug port (hidden) |
| Network Support | 4G LTE, 3G, 2G (optional), Wi-Fi (2.4GHz & 5GHz, IEEE 802.11 a/b/g/n/ac), Bluetooth 5.0 (BLE) |
| SIM Card Slot | 2 × SIM (1.8V/3.0V supported) |
| PSAM Card Slot | 2 × PSAM (3.0V supported) |
| Power Adapter | Input: AC 100~240V/1.7A, Output: DC 24V/1.5A/60W |
| Battery | Not included in the 80mm version |
| Dimensions | 250 × 231 × 108mm |
| Weight | 1.4kg |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
Features
Connectivity:
- 4G
- Ethernet
- NFC
- Wifi
- Bluetooth
Processor:
- Qualcomm Hexa-Core
RAM:
- 3
Scanner Capability:
- Yes
Screen Size Back:
- 4
Screen Size Front:
- 10.1
Storage Capacity:
- 32GB
Terminal Type:
- All-in-one POS
Touch Technology:
- Capacitative
Brand:
Sunmi
Scan Engine/Technology:
- 2D
Interface:
- USB
- Ethernet
- RJ12/RJ11
Colour:
- Black
OS Compatibility:
- Android 13
Warranty (Years):
- 3
Product Type/Condition:
- New
Printer Type:
- Thermal Printer
Display Type:
- Dual
