Description

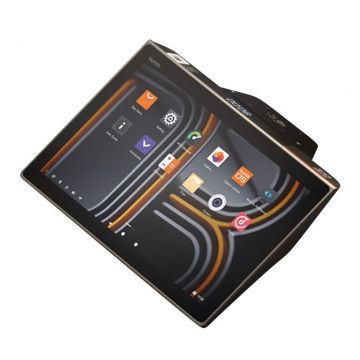

The SUNMI D3 MINI Smart POS Terminal (80mm Version) is a cutting-edge Android 13-based desktop POS system built for fast and secure transactions in retail, hospitality, and service industries. Equipped with a Qualcomm Hexa-Core processor, 3GB RAM, and 32GB storage, this compact POS delivers seamless performance and efficient operations. Featuring a 10.1" capacitive HD touchscreen, integrated 1D/2D barcode scanner, NFC-enabled smart card reader, and a high-speed 80mm thermal printer with auto cutter, it is designed to enhance productivity. With multiple connectivity options such as Wi-Fi, Bluetooth, USB, Ethernet, 4G, and RJ12 for cash drawers, the D3 MINI seamlessly integrates into various business environments.
Product Features
- Powerful Qualcomm Hexa-Core Processor – 1.9GHz speed for fast and efficient processing.
- 10.1" HD Capacitive Touchscreen – Multi-touch display with 300 nits brightness for clear visibility.
- Integrated 1D/2D Barcode Scanner – 1MP scanner for quick and accurate barcode reading.
- Smart Card & NFC Payment Support – Compatible with Type A & B, Mifare, Felica smart cards (ISO 14443, ISO 15693).
- High-Speed 80mm Thermal Printer – 250mm/s print speed, auto cutter, 60mm roll diameter, and 150km print lifespan.
- Seamless Connectivity – Supports Wi-Fi (802.11ac), 4G LTE, Ethernet, Bluetooth 5.0 (BLE), and multiple USB ports.
- Versatile I/O Ports – Includes 3 × USB 3.0, RJ11, RJ12 (cash drawer), RJ45 (Ethernet), and an audio jack.
- Dual Display System – 10.1" HD main screen and 4" capacitive customer display for enhanced interaction.
- Expandable Storage – Supports MicroSD (TF card) up to 1TB.
- Compact & Durable Design – Modular structure with rubber seals for dust and liquid protection.
Product Specifications
| Processor | Qualcomm Hexa-Core, 1.9GHz |
| Operating System | SUNMI OS (based on Android 13) |
| Memory | 3GB RAM + 32GB ROM |
| External Storage | MicroSD (TF card) up to 1TB |
| Display | Main: 10.1" HD (800x1280), capacitive touchscreen, 300 nits |
| Customer Display: 4" IPS (480x800), capacitive touchscreen, 300 nits | |
| Scanner | 1MP built-in scanner for 1D/2D barcode reading |
| Payment Support | Smart card reader (Type A & B, Mifare, Felica, ISO/IEC 14443, ISO 15693), NFC |
| Printer | 80mm thermal printer, 250mm/s print speed, auto cutter, 150km print lifespan, max roll diameter 60mm |
| Connectivity | 3 × USB 3.0 Type A, RJ11 serial port, RJ12 cash drawer port, RJ45 LAN port, audio jack, MicroUSB debug port (hidden) |
| Network Support | 4G LTE, 3G, 2G (optional), Wi-Fi (2.4GHz & 5GHz, IEEE 802.11 a/b/g/n/ac), Bluetooth 5.0 (BLE) |
| SIM Card Slot | 2 × SIM (1.8V/3.0V supported) |
| PSAM Card Slot | 2 × PSAM (3.0V supported) |
| Power Adapter | Input: AC 100~240V/1.7A, Output: DC 24V/1.5A/60W (EU Power Cable) |
| Battery | Not included in the 80mm version |
| Dimensions | 250 × 231 × 108mm |
| Weight | 1.4kg |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
Features
- 4G
- NFC
- Wifi
- Bluetooth
- Qualcomm Hexa-Core
- 3
- Yes
- 4
- 10.1
- 32GB
- All-in-one POS
- Capacitative
- 2D
- USB
- Ethernet
- RJ12/RJ11
- Black
- Android 13
- 3
- Thermal Printer
- Dual
