Description

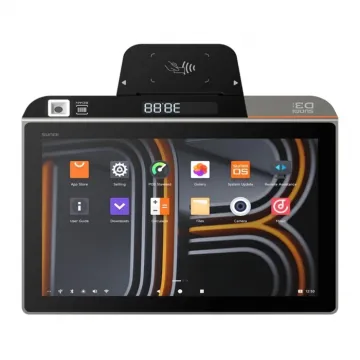

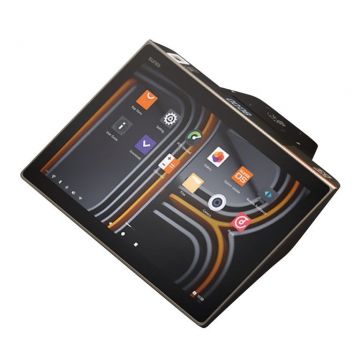

The SUNMI D3 MINI Smart POS Terminal (58mm Version) is a compact and feature-rich Android 13-powered POS system designed for fast transactions, seamless connectivity, and enhanced usability. With a Qualcomm Hexa-Core processor, 3GB RAM, and 32GB storage, it ensures smooth performance for retail, hospitality, and service-based businesses.
Equipped with a 10.1" capacitive HD touchscreen, 2.4" customer display, built-in 1D/2D barcode scanner, NFC-enabled smart card reader, and a 58mm thermal printer, the D3 MINI streamlines operations. Its 2600mAh built-in battery provides up to 4 hours of runtime, making it an excellent choice for businesses requiring mobility. With Wi-Fi, Bluetooth 5.0 (BLE), 4G, Ethernet, USB, and cash drawer ports, this POS seamlessly integrates into any setup.
Product Features
- High-Performance Qualcomm Hexa-Core Processor – 1.9GHz processing speed for efficient operations.
- 10.1" HD Capacitive Touchscreen – 800 × 1280 resolution, 300 nits brightness, and multi-touch capability.
- Compact & Lightweight Design – Space-saving 250 × 213 × 91mm footprint.
- Integrated 1D/2D Barcode Scanner – 1MP built-in scanner for fast and accurate barcode reading.
- Smart Card & NFC Payment Support – Compatible with Type A & B, Mifare, Felica smart cards (ISO 14443, ISO 15693).
- 58mm Thermal Printer – 100mm/s print speed, max roll diameter 50mm, and 50km print lifespan.
- Versatile Connectivity – Supports Wi-Fi (802.11ac), Bluetooth 5.0 (BLE), 4G LTE, USB, Ethernet, and RJ12 for cash drawers.
- Dual Display System – 10.1" HD main screen and 2.4" customer-facing seven-segment display.
- Built-in 2600mAh Battery – Provides up to 4 hours of operation, ideal for businesses requiring flexibility.
- Expandable Storage – Supports MicroSD (TF card) up to 1TB.
Product Specifications
Processor | Qualcomm Hexa-Core, 1.9GHz |
Operating System | SUNMI OS (based on Android 13) |
Memory | 3GB RAM + 32GB ROM |
External Storage | MicroSD (TF card) up to 1TB |
Display | Main: 10.1" HD (800x1280), capacitive touchscreen, 300 nits |
Customer Display: 2.4" seven-segment display | |
Scanner | 1MP built-in scanner for 1D/2D barcode reading |
Payment Support | Smart card reader (Type A & B, Mifare, Felica, ISO/IEC 14443, ISO 15693), NFC |
Printer | 58mm thermal printer, 100mm/s print speed, 50km print lifespan, max roll diameter 50mm |
Connectivity | 3 × USB 3.0 Type A, RJ11 serial port, RJ12 cash drawer port, RJ45 LAN port, audio jack, MicroUSB debug port (hidden) |
Network Support | 4G LTE, 3G, 2G (optional), Wi-Fi (2.4GHz & 5GHz, IEEE 802.11 a/b/g/n/ac), Bluetooth 5.0 (BLE) |
SIM Card Slot | 2 × SIM (1.8V/3.0V supported) |
PSAM Card Slot | 2 × PSAM (3.0V supported) |
Battery | Built-in 2600mAh battery (included in 4G version) |
Power Adapter | Input: AC 100~240V/1.5A, Output: DC 24V/1.5A/36W (EU Power Cable) |
Dimensions | 250 × 213 × 91mm |
Weight | 1.1kg |
Operating Temperature | 0°C ~ 40°C |
Storage Temperature | -20°C ~ 60°C |
