Description

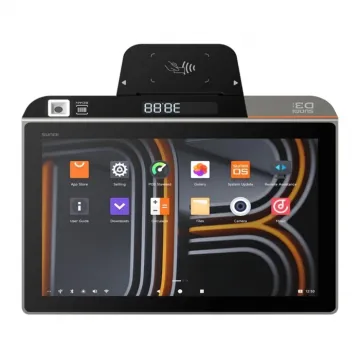

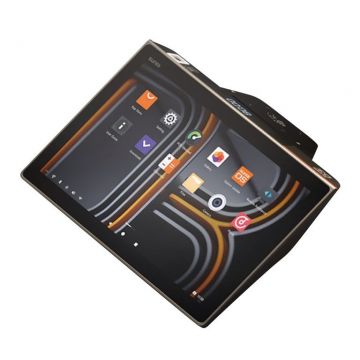

The SUNMI D3 MINI Smart Desktop POS Terminal is a compact yet powerful Android-based POS system designed for seamless transactions and enhanced operational efficiency. Equipped with a Qualcomm Hexa-Core processor, 3GB RAM + 32GB ROM, and Android 13, it ensures smooth and responsive performance. The 10.1" capacitive touchscreen and 4" customer display provide an intuitive user experience, while the built-in 1D/2D barcode scanner, smart card reader, and NFC support offer versatile payment solutions. Available in 58mm and 80mm printer versions, the D3 MINI adapts to diverse retail and hospitality environments, delivering speed, reliability, and convenience.
Product Features
- Powerful Performance – Qualcomm Hexa-Core processor with up to 2.4GHz, 3GB RAM, and 32GB storage for fast transactions.
- Dual Display Setup – 10.1" HD touchscreen for the operator and a 4" customer display for improved interaction.
- Versatile Payment Options – Supports smart cards, NFC, and 1D/2D barcode scanning for enhanced transaction flexibility.
- High-Speed Printing – 58mm version prints at 100mm/s, while the 80mm version delivers up to 250mm/s print speed with an auto cutter.
- Seamless Connectivity – Equipped with Wi-Fi (2.4GHz & 5GHz, 802.11ac), Bluetooth 5.0 (BLE), Ethernet, and USB ports for smooth integration.
- Space-Saving & Ergonomic – Compact and lightweight with an ergonomically inclined design for better usability.
- Enhanced Durability – Rubber seals protect the device from dust, liquid, and external elements.
- Expandable Storage – Supports up to 1TB MicroSD (TF card) for additional data storage.
- Long-Lasting Battery (58mm Version) – 2600mAh built-in battery provides up to 4 hours of runtime (58mm 4G version).
- Custom Branding Options – Personalise the terminal with your logo and brand colours.
Product Specifications
| Processor | Qualcomm Hexa-Core, up to 2.4GHz |
| Operating System | SUNMI OS (based on Android 13) |
| Memory | 3GB RAM + 32GB ROM |
| External Storage | MicroSD (TF card) up to 1TB |
| Display | Main: 10.1" HD (800x1280), capacitive touchscreen, 300 nits |
| Customer Display: 4" IPS (480x800), capacitive touchscreen | |
| Scanner | 1MP built-in scanner for 1D/2D barcode reading |
| Payment Support | Smart card reader (Type A & B, Mifare, Felica, ISO/IEC 14443, ISO 15693), NFC |
| Printer (58mm version) | Built-in 58mm thermal printer, 100mm/s print speed, 50km service life, max roll diameter 50mm |
| Printer (80mm version) | Built-in 80mm thermal printer, 250mm/s print speed, auto cutter, 150km service life, max roll diameter 60mm |
| Connectivity | 3 × USB 3.0 Type A, RJ11 serial port, RJ12 cash drawer port, RJ45 LAN port, audio jack, MicroUSB debug port (hidden) |
| Network Support | Wi-Fi (2.4GHz & 5GHz, IEEE 802.11 a/b/g/n/ac), Bluetooth 2.1/3.0/4.2/5.0 & BLE, 2G/3G/4G (optional) |
| SIM Card Slot | 2 × SIM (1.8V/3.0V supported) |
| PSAM Card Slot | 2 × PSAM (3.0V supported) |
| Power Adapter | 58mm version: Input: AC 100240V/1.5A, Output: DC 24V/1.5A/36W <br> 80mm version: Input: AC 100240V/1.7A, Output: DC 24V/1.5A/60W |
| Battery (58mm Version Only) | 2600mAh built-in battery (4G version) |
| Dimensions (58mm version) | 250 × 213 × 91mm |
| Dimensions (80mm version) | 250 × 231 × 108mm |
| Weight (58mm version) | 1.1kg |
| Weight (80mm version) | 1.4kg |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
Features
Connectivity:
- NFC
- Wifi
- Bluetooth
Processor:
- Qualcomm Hexa-Core
RAM:
- 3
Scanner Capability:
- Yes
Screen Size Back:
- 4
Screen Size Front:
- 10.1
Storage Capacity:
- 32GB
Terminal Type:
- All-in-one POS
Touch Technology:
- Capacitative
Brand:
Sunmi
Scan Engine/Technology:
- 2D
Interface:
- USB
- Ethernet
- RJ12/RJ11
Colour:
- Black
OS Compatibility:
- Android 13
Warranty (Years):
- 3
Product Type/Condition:
- New
Printer Type:
- Thermal Printer
Display Type:
- Dual
