Description

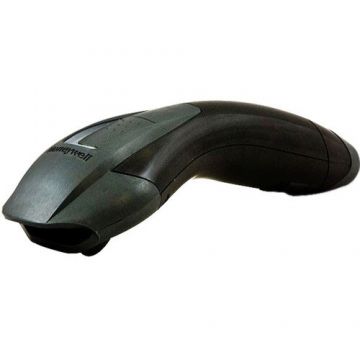

The Honeywell Voyager 1200g Barcode Scanner is a high-performance single-line laser scanner designed for retail and general-purpose scanning applications. Built on the legacy of the world’s best-selling linear scanner, the 1200g delivers exceptional scan performance—even on poor quality or damaged barcodes.
With CodeGate® technology for precise targeting and automatic in-stand detection, it’s ideal for both handheld and presentation scanning. Supporting USB, RS232, and Keyboard Wedge interfaces, it offers flexibility for various system integrations.
The scanner’s IP42 rating, recessed scan button, shock-resistant housing, and ergonomic design ensure long-lasting performance in busy environments. The Voyager 1200g is the go-to choice for retail stores, POS systems, inventory management, and more.
Product Features
- Fast and accurate scanning of all standard 1D and GS1 barcodes
- CodeGate® Technology ensures precise barcode targeting before transmission
- Aggressive performance on poor-quality or damaged barcodes
- Multi-interface support: USB, RS232, and Keyboard Wedge (auto-detect)
- Automatic in-stand detection and configuration for hands-free scanning
- Durable design: Withstands 30 drops from 1.5 metres to concrete
- IP42-rated sealing: Protection against dust and moisture
- Scan speed of 100 scans/sec with 30° horizontal scan angle
- Ergonomic form factor with integrated finger groove for comfortable use
- Reliable depth of field up to 367 mm, ideal for retail environments
Product Specifications
Scan Technology | Single-Line Laser |
Scan Capability | 1D barcodes, GS1 DataBar |
Scan Speed | 100 scan lines per second |
CodeGate Technology | Yes |
Connectivity | Wired |
Interfaces Supported | USB, RS232, Keyboard Wedge |
Reading Distance (DoF) | Up to 367 mm (14.4 in) depending on barcode type |
Drop Resistance | 1.5 m (30 drops) |
Ingress Protection Rating | IP42 |
Scan Angle | Horizontal: 30° |
Reading Angle (Pitch/Skew) | 60° / 60° |
Print Contrast | 10% minimum reflectance difference |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 60°C |
Humidity Tolerance | 0% to 95% non-condensing |
Light Level Tolerance | Up to 70,000 lux |
Weight | Approx. 125 g |
Dimensions (L x W x H) | 180 mm x 66 mm x 97 mm |
Colour | Black |
Warranty | 5 Years |
Features
- Wired
- Handheld
- 1D
- Keyboard Wedge
- USB
- Serial/RS232
- Standard
- Black
- 5
