Description

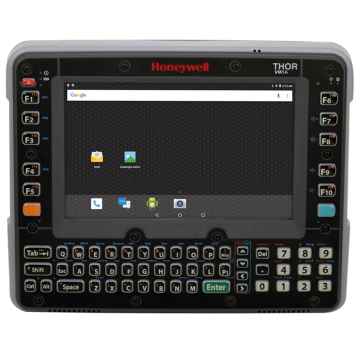

The Honeywell Thor VM1A is a rugged, vehicle-mounted computer designed for seamless warehouse, manufacturing, and intermodal logistics operations. Powered by the Qualcomm Snapdragon 660 octa-core processor and built on Honeywell’s Mobility Edge™ platform, the VM1A ensures extended lifecycle support, easy deployment, and security updates up to Android 14.
Featuring a large 8-inch WXGA touchscreen, QWERTY keyboard, and multiple connectivity options including Wi-Fi 802.11ac, Bluetooth 5.0, and NFC, the Thor VM1A keeps workers connected and productive in any environment. Its Smart Dock technology allows quick installation or removal, reducing downtime and maintenance costs.
The IP66-rated and MIL-STD-810F certified design ensures durability, while the cold storage touchscreen option with a defroster makes it ideal for extreme conditions. With a field-replaceable front panel, enterprises can minimize downtime by servicing the most commonly worn-out components in-house.
Product Features
- Smart Dock Technology – Enables quick mounting and removal for operational flexibility
- Field-Replaceable Front Panel – Reduces downtime and service costs
- Powerful Qualcomm 660 Processor – Ensures smooth and fast performance
- Honeywell Mobility Edge™ Platform – Provides extended security updates and support
- 8-Inch High-Brightness Touchscreen – Available in indoor (400 NIT) and outdoor (900 NIT) versions
- QWERTY Keyboard with Backlight – Full 64-key layout for efficient data entry
- Wi-Fi 802.11ac & Bluetooth 5.0 – Reliable wireless communication
- IP66 & MIL-STD-810F Certified – Built to withstand harsh industrial environments
- Cold Storage Compatibility – Optional screen defroster for freezer environments
- Wide Power Supply Range – 10V to 60V DC input with optional AC/DC converters
Product Specifications
Category | Details |
Processor | Qualcomm Snapdragon 660, 2.2 GHz Octa-Core |
Operating System | Android 8 (upgradable to Android 13, with potential for Android 14) |
Memory | 4 GB RAM, 32 GB Flash |
Storage Expansion | MicroSD slot (supports up to 512 GB SDXC/SDHC) |
Display | 8-inch WXGA (1280 x 768), LED-backlit, 400 NIT (indoor) or 900 NIT (outdoor) |
Touchscreen | Resistive (finger/stylus) or Capacitive (multi-touch, glove-compatible) |
Keyboard | 64-key QWERTY with number pad and function keys (backlit) |
Wireless Connectivity | Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0 (BLE), NFC |
WLAN Security | WPA/WPA2, EAP-TLS, PEAP, TTLS, PWD, FAST, LEAP |
Ports (Enhanced Dock) | 2x RS-232 COM, 4x USB 2.0, Ethernet RJ45, CANbus, headset port, DC power input |
Ports (Standard Dock) | 2x RS-232 COM, 2x USB 2.0, CANbus, headset port, DC power input |
Sensors | Ambient light sensor, accelerometer, gyroscope, magnetometer |
Power Supply | 10-60V DC input, integrated Li-Ion UPS (30-min life at 20°C) |
Dimensions | 268 mm x 214 mm x 43 mm |
Weight | 2.1 kg (computer), 1.2 kg (dock) |
Operating Temperature | -20°C to +50°C |
Storage Temperature | -30°C to +50°C |
Humidity | 5% to 95% (non-condensing) |
Environmental Rating | IP66, MIL-STD-810F |
Software Features | Terminal Emulator, Enterprise Browser, MDM Support, Mobility Edge Tools |
Warranty | 1-Year Factory Warranty |
