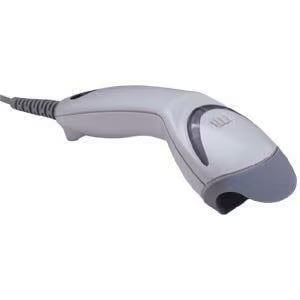

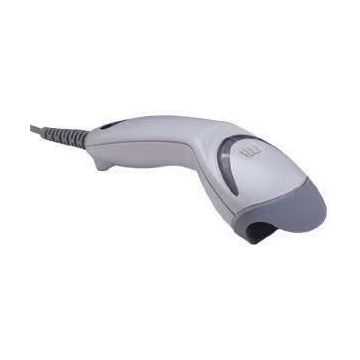

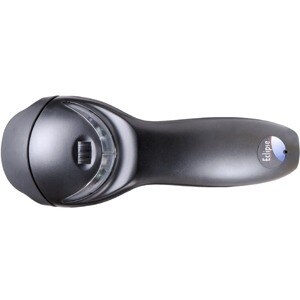

Honeywell Eclipse MS5145 1D Laser - Handheld Barcode Scanner - USB RS232 - Light Grey

Wired, Handheld, USB, Serial/RS232, PS/2 Keyboard Wedge, Standard, Grey, 3
GBP £50.00
(Inc GST)
MK5145-71A38-EU
+

Description

The Honeywell Eclipse MS5145 is a compact, high-speed 1D laser barcode scanner, ideal for applications requiring quick and precise scanning. Built with Metrologic’s patented CodeGate™ technology, the scanner ensures accurate barcode targeting and seamless data transmission with a single button press — making it the perfect solution for point-of-sale, inventory control, menu scanning, and document processing.

Its ergonomic, lightweight handheld design, paired with an impressive 72 scans per second, ensures enhanced efficiency and comfort for everyday use. With multi-interface connectivity including USB and Keyboard Wedge (USB cable sold separately), the MS5145 offers compatibility across various retail and office environments.

Engineered for durability, it can withstand drops from up to 1.5 metres and complies with RoHS and WEEE environmental standards. Whether you're scanning product barcodes at checkout or tracking inventory, the Honeywell Eclipse MS5145 is a cost-effective, reliable solution.

Product Features

  • High-performance 1D barcode scanning with laser precision
  • CodeGate™ technology for fast and accurate data transmission
  • Single-line scan pattern ideal for menu scanning and POS applications
  • Rapid scanning at 72 scans per second for improved workflow efficiency
  • Lightweight and ergonomic design – only 97 grams
  • Multi-interface connectivity (USB, Keyboard Wedge) for flexible integration
  • Environmentally compliant with RoHS and WEEE directives
  • Withstands drops from up to 1.5 metres, ideal for daily use
  • Ideal for retail, inventory management, and office applications
  • Compatible with notebooks and workstations for seamless operations


Product Specifications

Scan Capability1D Laser Scanner
Scan PatternSingle Line
Scan Rate72 scans per second
Maximum Scan Resolution0.10 mm
Barcode Symbologies SupportedAll standard 1D barcodes incl. RSS
TechnologyCodeGate™ with laser scan source
Connectivity TechnologyWired
Interfaces SupportedUSB, Keyboard Wedge (Multi-Interface)
Scanning DistanceUp to 178 mm
Drop Specification1.5 m (5 ft)
Minimum Print Contrast35>#/td###
Maximum Ambient Light4842 lux
Field of View (Horizontal)50°
Reading Angle (Skew/Pitch)Skew: 52° / Pitch: 68°
Dimensions (H x W x D)35.6 mm x 63.5 mm x 170.2 mm
Weight97 g
ColourLight Grey
Environmental ComplianceRoHS, WEEE
Product LineEclipse
ModelMS5145
Manufacturer Part NumberMK5145-71A38-EU

Features

Connectivity:
  • Wired
Form Factor:
  • Handheld
Interface:
  • USB
  • Serial/RS232
  • PS/2 Keyboard Wedge
Scan Range:
  • Standard
Colour:
  • Grey
Warranty (Years):
  • 3

Attachments

Brochure (eclipse-5145-en.pdf, 229 Kb) [Download]
