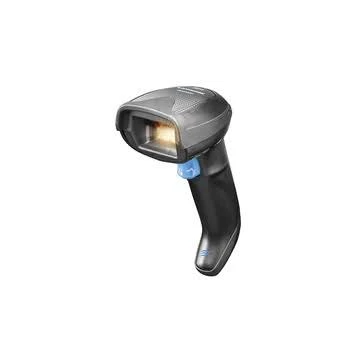

Datalogic Gryphon - GBT4500 - Bluetooth 2D Barcode Scanner - High Density - Imager - Green Spot

Bluetooth, Handheld, 2D Imager, Keyboard Wedge, USB, Serial/RS232, Black, IP52, Logistics/Warehouse, Healthcare, Manufacturing, Retail, 3
GBP £415.00
(Inc GST)
GBT4500-BK-HD-WLC
+

Description

The Datalogic Gryphon GBT4500 is a premium wireless 2D barcode scanner designed for high-performance scanning in retail, healthcare, manufacturing, and commercial service environments. Featuring advanced Bluetooth® 4.0 wireless technology, high-density imager, and Datalogic’s unique Green Spot and 3GL™ (Three Green Lights) technology, this scanner offers unmatched reliability and efficiency.

Equipped with a 1 MP sensor and high-density optics, the Gryphon I GBT4500 captures even the smallest codes with precision. The ergonomic design, disinfectant-ready enclosure, and motion-sensing technology ensure seamless operation in dynamic environments. With wireless inductive charging, vibration feedback, and omnidirectional reading, this scanner delivers premium performance with minimal maintenance.

Note: Charging cradle sold separately.

Product Features

  • High Density 2D Imager for precise scanning of small, condensed codes
  • Bluetooth 4.0 with BLE for wireless connectivity up to 100m
  • 1 MP Megapixel Sensor for superior scan depth and image capture
  • Green Spot + 3GL™ Feedback System for instant good-read confirmation
  • Wireless Inductive Charging System – no physical contacts to maintain
  • Motionix™ Technology – automatic switch between presentation and handheld modes
  • Disinfectant-Ready Enclosure – ideal for healthcare and hygiene-sensitive environments
  • Omnidirectional Reading – fast, intuitive scanning from any angle
  • Reads 1D, 2D, Postal, Stacked & Composite Codes, and Digimarc
  • Long-Lasting 3250 mAh Battery with up to 80,000 scans per charge
  • Batch Mode & Point-to-Point / Multi-Point Transmission Support

Product Specifications

Scanner Type2D Imager, High Density
ConnectivityBluetooth 4.0 with BLE
Optics1 Megapixel (1280 x 800)
IlluminationWhite LED / Hyper Red LED
Aimer650nm Red Laser
Motion Tolerance35 IPS
Resolution (HD)1D: 3 mil / PDF417: 3 mil / Data Matrix: 4 mil
Depth of Field (HD)Code 39 (3 mil): 5–15 cm / Data Matrix (5 mil): 5.5–9 cm
InterfacesUSB / RS-232 / Keyboard Wedge
Battery3250 mAh Li-Ion, up to 80,000 reads per charge
Charging Time~4 hours
Drop Resistance1.8 m onto concrete
Environmental SealingIP52
Operating Temp0°C to 50°C
Storage Temp-40°C to 70°C
Dimensions16.6 x 6.8 x 10.9 cm
Weight235 g
ColourBlack
Warranty3-Year Factory Warranty

Features

Connectivity:
  • Bluetooth
Form Factor:
  • Handheld
Scan Engine/Technology:
  • 2D Imager
Interface:
  • Keyboard Wedge
  • USB
  • Serial/RS232
Colour:
  • Black
IP Rating:
  • IP52
Industry/Vertical:
  • Logistics/Warehouse
  • Healthcare
  • Manufacturing
  • Retail
Warranty (Years):
  • 3

Attachments

Brochure (datalogic_gbt4500.pdf, 427 Kb) [Download]
