Description

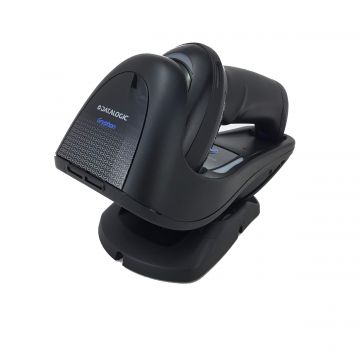

he Datalogic Gryphon GM4500 High Density (HD) cordless barcode scanner delivers premium performance in general-purpose scanning applications. Equipped with a 1-megapixel imager, this high-density model offers exceptional reading capabilities for small and condensed barcodes in a range of industries including retail, healthcare, light manufacturing, postal, and commercial services.
Featuring Datalogic’s STAR Cordless System at 433 MHz, the GM4500 ensures reliable, secure wireless communication with a radio range up to 50 metres in open air. The scanner integrates Datalogic's exclusive Green Spot and 3GL (Three Green Lights) technologies for superior good-read feedback, alongside Motionix™ motion-sensing technology for automatic scanning mode transitions.
With its disinfectant-ready IP52-rated enclosure and wireless battery charging capabilities, the Gryphon GM4500 offers top-tier reliability and hygiene compliance in demanding environments. The scanner comes with a high-capacity 3250mAh battery (charging/transmitter cradle sold separately).
Product Features
- Cordless 2D high-density imager scanner
- Datalogic STAR Cordless System at 433 MHz
- Reads 1D, 2D, postal, stacked, and composite barcodes
- 1 MP optics for superior scanning of small and dense codes
- Datalogic Green Spot and 3GL technology for instant good-read confirmation
- Motionix™ motion-sensing technology for automatic mode switching
- Wireless battery charging system (no contact points)
- Long-lasting 3250mAh lithium-ion battery (included)
- Omnidirectional scanning with wide depth-of-field
- Disinfectant-ready housing with IP52 rating
- Ergonomic and lightweight design for comfortable use
- Compatible with RS-232, USB, and Keyboard Wedge interfaces
- Adjustable cradle with scan-while-charging functionality
Product Specifications
| Scanner Type | 2D Imager (High Density) |
| Wireless Communication | STAR Cordless System, 433 MHz |
| Image Sensor | 1 Megapixel (1280 x 800 pixels) |
| Resolution | 1D: 3 mils |
| Radio Range | Up to 50m (open air) |
| Good-Read Feedback | Green Spot, 3GL LEDs, optional vibration |
| Battery | Lithium-Ion, 3250mAh (included) |
| Reads per Full Charge | Up to 80,000 scans |
| Charging Time | ~4 hours (via external power) |
| Interfaces | RS-232, USB, Keyboard Wedge (Multi-Interface) |
| Enclosure Rating | IP52, Disinfectant-Ready |
| Drop Resistance | 1.8m (6ft) to concrete |
| Operating Temperature | 0°C to 50°C |
| Dimensions (LxWxH) | 16.6 x 6.8 x 10.9 cm |
| Weight | 235g |
| Colour | Black |
| Included Items | Scanner, Battery (Cradle sold separately) |
| Warranty | 3 Years |
Features
- Cordless
- Handheld
- 2D Imager
- Keyboard Wedge
- USB
- Serial/RS232
- High Density
- Black
- IP52
- Logistics/Warehouse
- Healthcare
- Manufacturing
- Retail
- 3
