Description

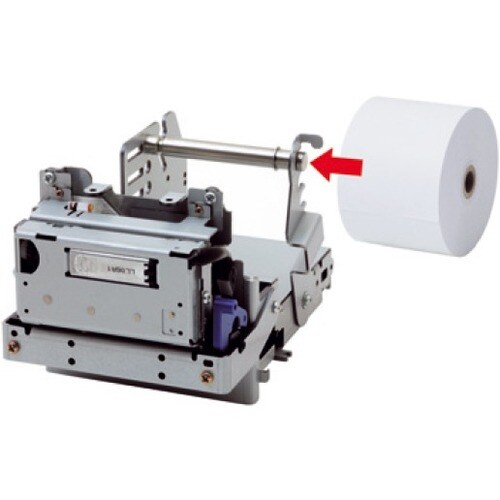

The Citizen PMU-2300III is a high-performance direct thermal kiosk printer, designed to provide exceptional flexibility and seamless integration into ticketing applications. This compact and robust desktop printer supports two-colour printing, features an automatic cutter, and boasts 28 different paper installation options, making it the most versatile choice for kiosks and ticketing systems.
With a maximum print speed of 150 mm/s and 203 dpi resolution, this printer delivers high-quality output for tickets, receipts, and labels. It supports three different paper roll sizes and operates efficiently in extreme temperatures (-20°C to 60°C), making it ideal for both indoor and outdoor environments.
Product Features
- Two-Colour Printing – Enables vibrant ticket printing for enhanced readability.

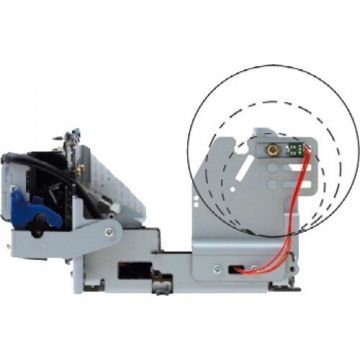

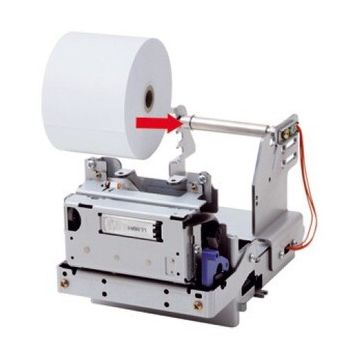

- Flexible Paper Installation – Offers 28 different paper installation options for maximum versatility.
- High-Speed Printing – Prints at an impressive speed of 150 mm/s.
- Automatic Cutter – Ensures precise and efficient cutting with a durability of 100,000 cuts.
- Wide Operating Temperature Range – Functions flawlessly in temperatures from -20°C to 60°C.
- Multiple Paper Roll Sizes – Compatible with three different paper roll sizes for added flexibility.
- 80mm Print Width – Supports a maximum label width of 80mm, making it ideal for ticket printing.
- Vertical Printing Support – Offers efficient and convenient vertical printing capabilities.
- Reliable Direct Thermal Printing – Ensures high-speed, cost-effective printing without ink or toner.
- Serial Interface for Easy Connectivity – Provides seamless integration with existing systems.
Product Specifications
| Printing Technology | Direct Thermal |
| Print Resolution | 203 dpi |
| Print Speed | 150 mm/s |
| Print Width | 80 mm (3.15 inches) |
| Colour Capability | Two-Colour (Black & Red/Black & Blue) |
| Cutter Type | Automatic Cutter |
| Cutter Life | 100,000 Cuts |
| Memory | 256 KB Standard Memory |
| Interfaces | Serial Port |
| Media Type | Ticket, Receipt, Label |
| Maximum Label Width | 80 mm |
| Media Thickness | 150 µm |
| Media Sensors | Paper Near End, Black Mark, Platen Open |
| Operating Temperature | -20°C to 60°C |
| Power Supply | 24V DC Power Adapter |
| Dimensions (W x H x D) | 118mm x 96mm x 179mm |
| Weight | Approx. 1.10 kg |
Features
Cutter Option:
- Auto-Cutter
Print Speed:
- 150mm/sec
Brand:
Citizen
Interface:
- RS232
OS Compatibility:
- Windows
Warranty (Years):
- 1
Product Type/Condition:
- New
Print Method:
- Direct Thermal
Print Resolution-DPI:
- 203
Max Print Width:
- 3.1 inch
Printer Type:
- Desktop
